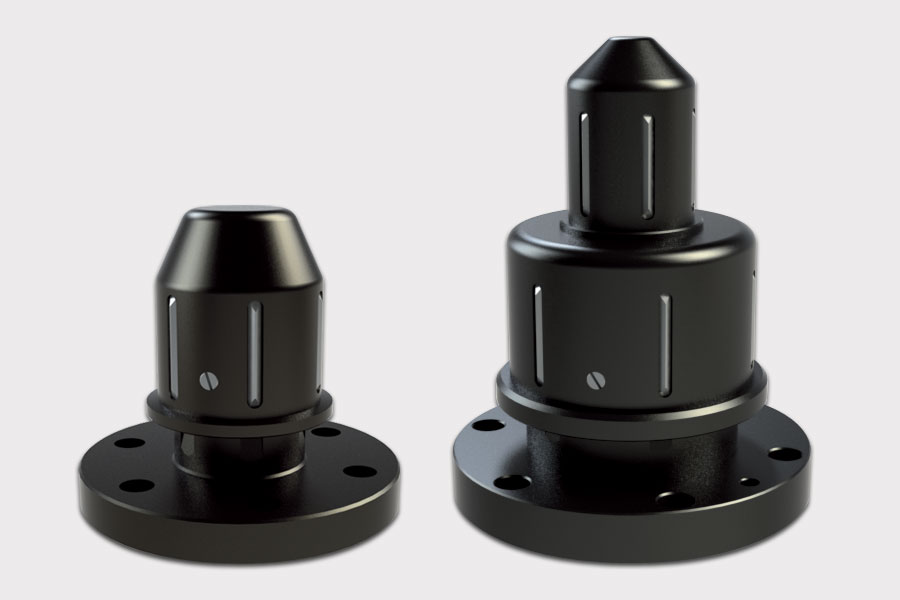

The TM axial thrust mechanical core chucks are provided with a spring system to expand a series of keys and block the reel core. Designed with both mono and double diameter, they are available for reel cores from 3” to 12” and for high loads up to 150000 N. Are also available special versions with central bore for the alignment of the reel and with ejection flange.
Technical data
Mono diameter TM/A
| Inside core diameter |
3" |
4" |
5" |
6" |
12" |
| Max load (N) |
12000 |
27000 |
50000 |
75000 |
150000 |
| Transmissible torque (Nm) |
250 |
1100 |
2500 |
3000 |
180000 |
Double diameter TM/B
| Inside core diameter |
3/4" |
3/6" |
4/6" |
| Max load (N) |
7500/25000 |
15000/75000 |
27000/75000 |
| Transmissible torque (Nm) |
250/1100 |
250/3000 |
1100/3000 |
Download
| |
Datasheet |
Drawing PDF |
Drawing Dwg |
3D |
User manual |
| TM-A mono diameter |
 |
|
|
|
|
| TM-B double diameter |
|
|
|
|
|
