T-two is a digital tension controller for the automatic regulation of the web tension; provided with a compact and sturdy case, it has been designed to be mounted on a DIN bar inside the electrical panel of the machine. The core of T-two is the new P.I.D. algorithm specifically developed by our technicians to stabilize critical systems.

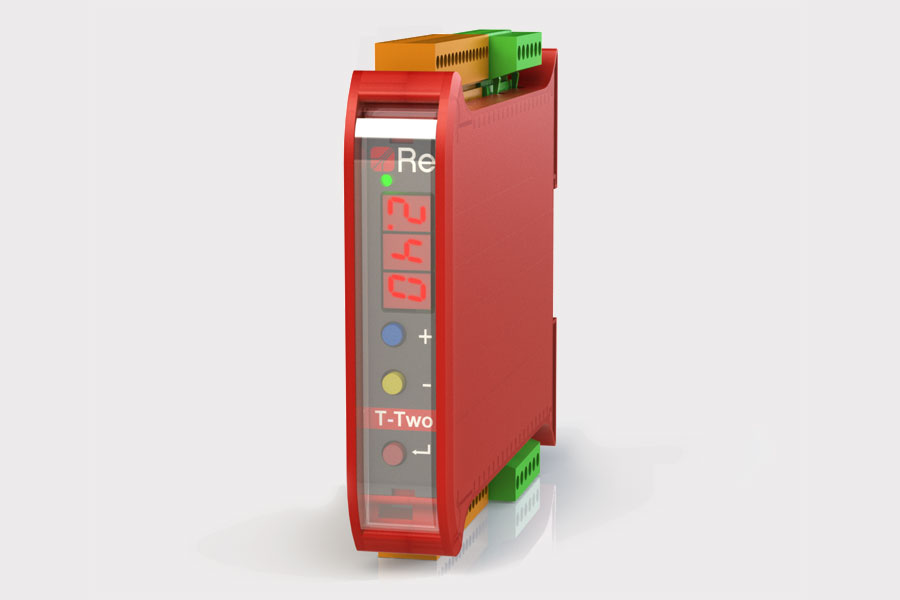

The control panel of T-two tension controller is equipped with 3 buttons for the regulation and the management of the parameters and a 3 digit display with 7 red segments.
T-two standard is able to regulate the web tension using the brake torque that refers to the signal coming from load cells or dancing roller.
T-two LB is the version studied for SPLICER systems: the non-working reel is held down by the stand-by torque, while the working reel is regulated in torque by the P.I.D. algorithm to keep the dancing roller in the preset setpoint position.
Technical data
| |
T-two |
T-two LB |
| Power supply |
24 Vdc (+/- 10%) |
24 Vdc (+/- 10%) |
| Power |
6 W max (logic)
+ 58 W max (power) |
6 W max (logic)
+ 58 W max (power) |
| Analog input 0÷13 mV |
1 max n. 2 load cells |
- |
| Analog input 0÷10 V / 4÷20 mA |
1 max n. 1 amplified cell or dancing roller |
- |
| Analog input 0÷10 V |
1 remote set point
1 dancing roller piston control |
1 dancing roller |
| Digital input 24 V |
4 remote controls from PLC |
2 remot controls from PLC |
| Output 10 Vdc |
1 potentiometers supply |
- |
| Output 24 Vdc |
1 amplified cells or remote display supply |
- |
| Analog output (0÷10 Vdc, 4÷20 mA, ecc.) |
1 tension proportional or dancing roller piston control
1 PID torque control |
- |
| PWM output 0÷1 A |
1 electromagnetic brake |
2 electromagnetic brakes |
| Digital relay outputs 30 Vdc/Vac |
2 for alarms |
- |
| Weight |
170 g |
170 g |
| Working temperature |
0÷50 °C |
0÷50 °C |
| IP protection class |
IP20 |
IP20 |
Download
| |
Datasheet |
Drawing PDF |
Drawing Dwg |
3D |
User manual |
| T-TWO |
 |
|
|
|
|
| T-TWO LB |
|
|
|
|
|
