Product info
The original Re spare parts for pneumatic brakes represent the best in terms of performance, comfort and durability. They are designed and manufactured to meet the same qualitative standards of Re products and guarantee the best performance for a pneumatic brake in any working condition. The very high designing standard, the stricted controls of the whole productive process and materials selection, ensure the best qualitative and technological level.
Selecting low quality spare parts, can often cause serious problems not only to the whole pneumatic brake but also to the operator's health; only with Re original spare parts we can guarantee the maximum performance our pneumtic brakes can reach.

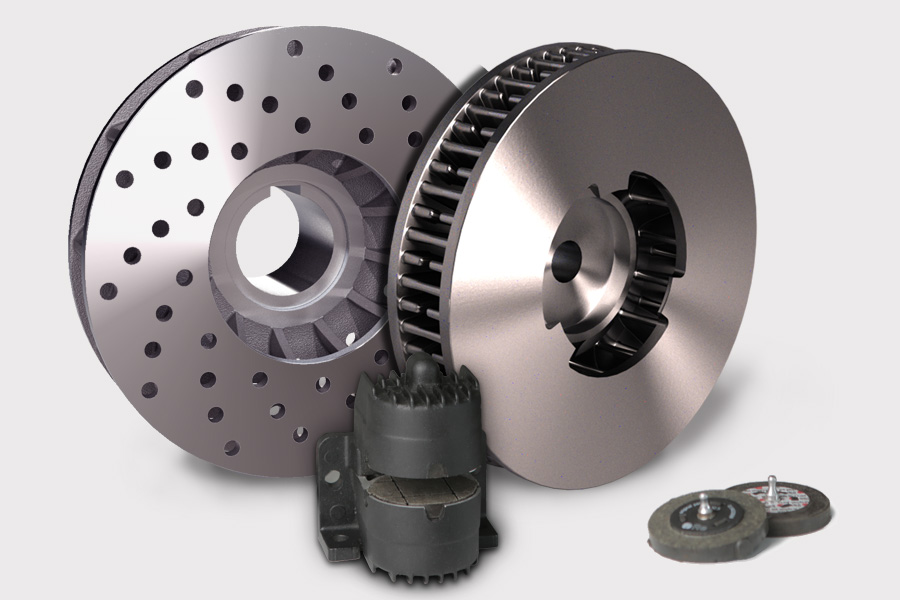

BRAKE DISCS: Re brake discs are provided with a technology that guarantees a perfect cooling of the crucial zone of the brake, maintaining very high performances and increasing the lifecycle of the pneumatic brake.
BRAKE PADS: Since years we have been testing and selecting the best performing mixture to guarantee high performances, long life span and, moreover, no emission of fine particles that can damage the operator health. All Re brake pads are strictly asbestos-free.
ATTENTION: nowadays you can find on the market several kind of pads that are apparently similar to Re ones, but performances are very low and sometimes happens that they cause a permanent damage to the brake.
Technical data
Brake disc |
Old CX disc |
New CX disc |
Material |
cast iron G26 |
special cast iron |
Heat dissipation with dx rotation |
100% |
100% |
Heat dissipation with sx rotation |
-20% |
100% |
Pads wear with HP3 fan |
3-4 years |
+20% |
Taper lock max |
45x75 |
50x80 |
Max central bore with key |
65 H7 + key |
75 H7 + key |
Min hole without bush |
35 H7 + key |
30 H7 + key |
Weight with short hub |
9 kg |
9,5 kg |
Weight with long hub |
11 kg |
11,5 kg |
Pads |
R15 |
NT |
KEVLAR |
Asbestos free |
yes |
yes |
yes |
Powder emission limitation |
ooooo |
oooo |
ooo |
Performance with high temperature |
ooooo |
oooo |
ooo |
Life span |
ooooo |
ooo |
ooooo |
Waterproof |
oooo |
ooo |
oo |
RoHS compliance |
yes |
yes |
yes |
Antivibration |
ooo (AR3) |
ooo (AR1) |
no |
Antirotation |
yes |
no |
no |
Wear sensor |
yes |
no |
no |
