Product info

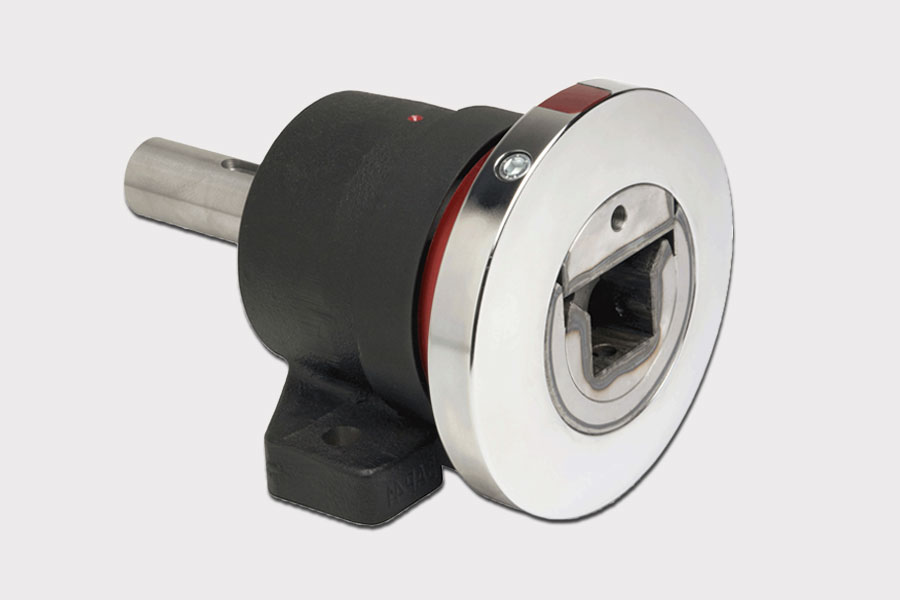

Safety chucks are the ideal solution for the roll support and torque transfer during the unwinding and rewinding applications.
SAF/SAP safety chucks are designed and made to guarantee reduced setup time, very high security level, compatibility with almost all kind of expanding shafts and long life span. SAF/SAP are available in two versions, with feet or flange, all with sliding opening; maximum reel weight of 1600 kg. Interchangeable inserts available in a range of shapes and sizes, including customer’s specifications.
Technical data
| |
SAF.21 |
SAF/P.31 |
SAF/P.41 |
SAF/P.51 |
| Max load capacity (N) |
3250 |
4000 |
8000 |
14000 |
| Max working speed (rpm) |
1350 |
1200 |
1100 |
1100 |
| Max transmissible torque (Nm) |
200 |
235 |
900 |
1100 |
| Working temperature |
0÷50°C |
0÷50°C |
0÷50°C |
0÷50°C |
Download
| |
Datasheet |
Drawing PDF |
Drawing Dwg |
3D |
User manual |
| SAF/.21 |
 |
|
|
|
|
| SAF/SAP.31 |
|
|
|
|
|
| SAF/SAP.41 |
|
|
|
|
|
| SAF/SAP.51 |
|
|
|
|
|
