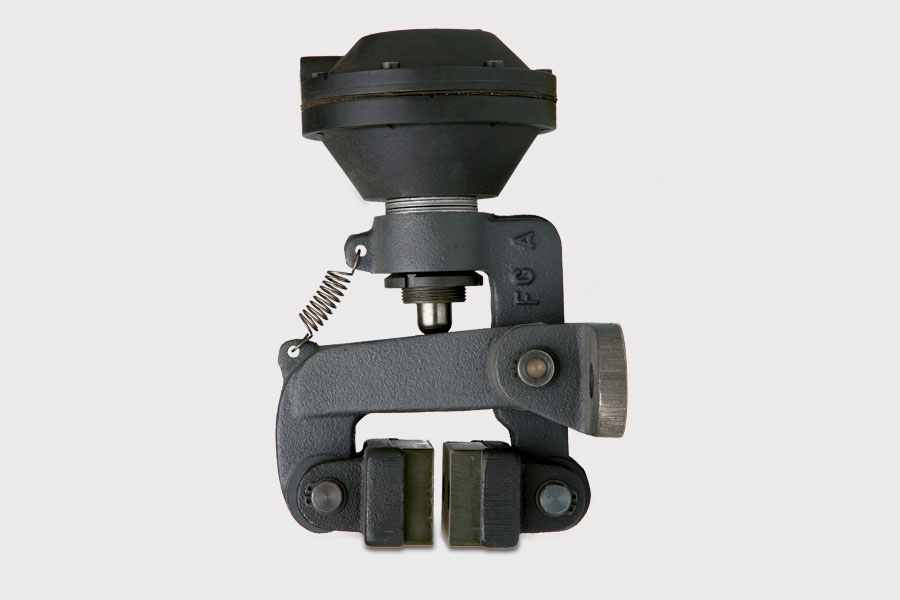

SA CALIPER BRAKES

  • high braking torque
  • manually operated or pneumatic
  • auto-aligning
  • ideal for emergecy braking (spring applied)
REQUEST INFO



Product info

Manually or pneumatically operated calipers (air applied and spring applied), can be used to obtain high braking torque and are ideal for emergency braking on any machine used for processing material on reels. A cheap and simple solution, even for the most outdated machines.





Technical data


  Max tangential force Max pressure Least pressure open. Air volume
Manual air applied 560-2540 N - - -
Pneumatic air applied 816-42000 N 7 bar - 0,007-1 dm3
Pneumatic spring applied 690-31180 N - 5 bar 0,04-3 dm3




Download

  Datasheet Drawing PDF Drawing Dwg 3D User manual
PU/M-SA manual caliper
PZV/M-SA manual caliper
PU/P-SA pneumatic air applied caliper
PU 2"-SA pneumatic air applied caliper
PZ-SA pneumatic air applied caliper
PZM12 2"/3"/4"/5"-SA pneumatic air applied caliper
PZR 2"/3"/4"/5"-SA pneumatic air applied caliper
PZD 2"/3"/4"/5"-SA pneumatic air applied caliper
PZL 3"/4"/5"/6"-SA pneumatic air applied caliper
PR 5"/6"/7"-SA pneumatic air applied caliper
PU 2"/3"-SA pneumatic spring applied caliper
PZ 3"/4"-SA pneumatic spring applied caliper
PZM12 3"/4"/5"-SA pneumatic spring applied caliper
PR 5"/7"-25-SA pneumatic spring applied caliper

APPLICATION MARKETS



Carton Board Paper
Plastic film Tissue
Wire / Cables
