Product info

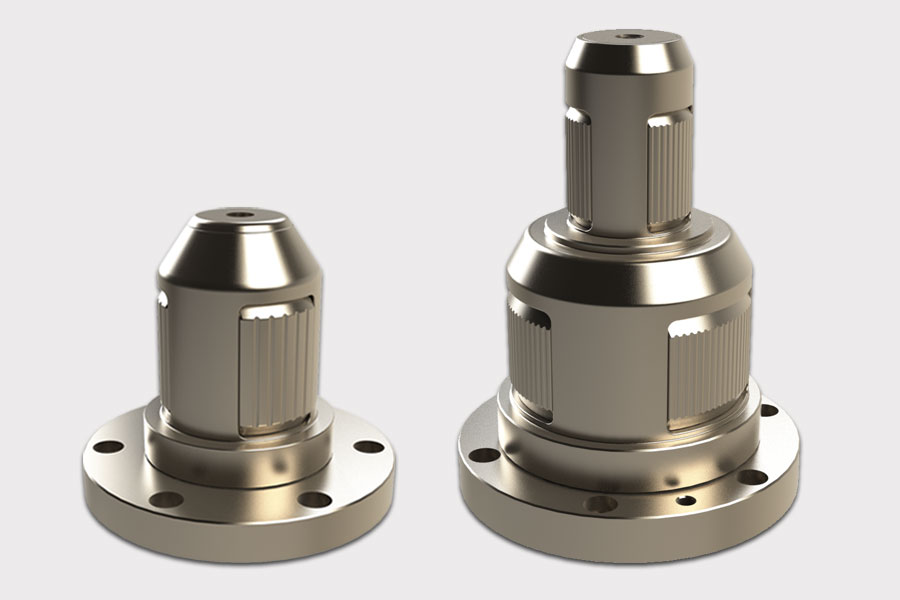

Rotogrip rotation core chucks use the torque produced by the braking force and the opposite web tension (coupled with a brake or motor) to expand the sector elements in order to block and centre automatically the reel core.
The sector elements, with a wide contact surface, ensure maximum control of the reel and reduce damages to the cardboard cores, which can be therefore used again.
Flexibility is another important characteristic of Rotogrip chucks: depending on the application, the fixing flange can be made on customer's request, are available different dimensions, with mono or double diameter and for cores from 3" to 12".
Technical data
Mono diameter
| Inside core diameter |
3"S |
Ø100 |
4"S |
5"S |
6"S |
12"S |
| Max expansion (mm) |
85,5 |
109 |
110 |
137 |
161 |
313 |
| Max load (N) |
18000 |
45000 |
45000 |
45000 |
110000 |
110000 |
| Transmissible torque (Nm) |
1500 |
2500 |
2500 |
2500 |
5000 |
16000 |
Double diameter
| Inside core diameter |
3/4" |
3/6" |
4/6" |
| Max expansion (mm) |
85,5/101 |
85,5/161 |
110/161 |
| Max load (N) |
18000/45000 |
18000/110000 |
45000/110000 |
| Transmissible torque (Nm) |
1150/2500 |
1150/5000 |
2500/5000 |
