Product info

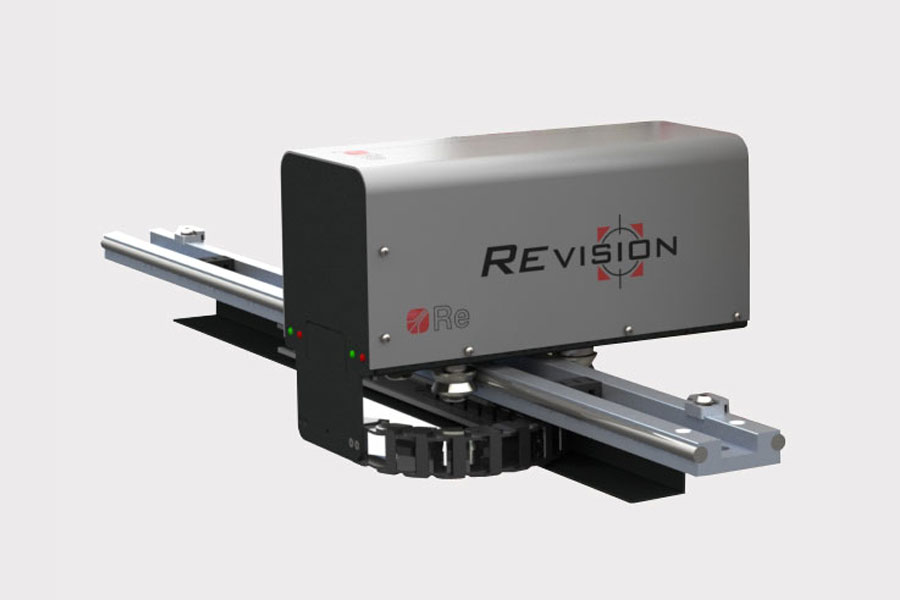

The web viewing system ReVision II Raffaello is the basic version of the family, mainly adopted in the narrow-web sector because of its simplicity and its compact size. In this sector the operator usually need to check the printing alignment and some printing detail.
It is possible to store a picture for the direct comparison during the printing process. We deliver both the manual and the motorized version of Raffaello, with a remote control or an integrated keyboard in the control computer.
The system can be synchronized with a proximity sensor, an encoder, a contrast sensor or an external digital signal.
Technical data
| Viewing area (mm) |
75x90 |
| Movement |
manual/motorized |
| External strobe lamp |
optional |
| Optical zoom |
10x |
| Picture memory |
1 |
| Touch screen |
optional |
| Lamp for UV inks |
optional |
| Colour density reference (RGB/CYM) |
included |
Download
| |
Datasheet |
Drawing PDF |
Drawing Dwg |
3D |
User manual |
