Product info

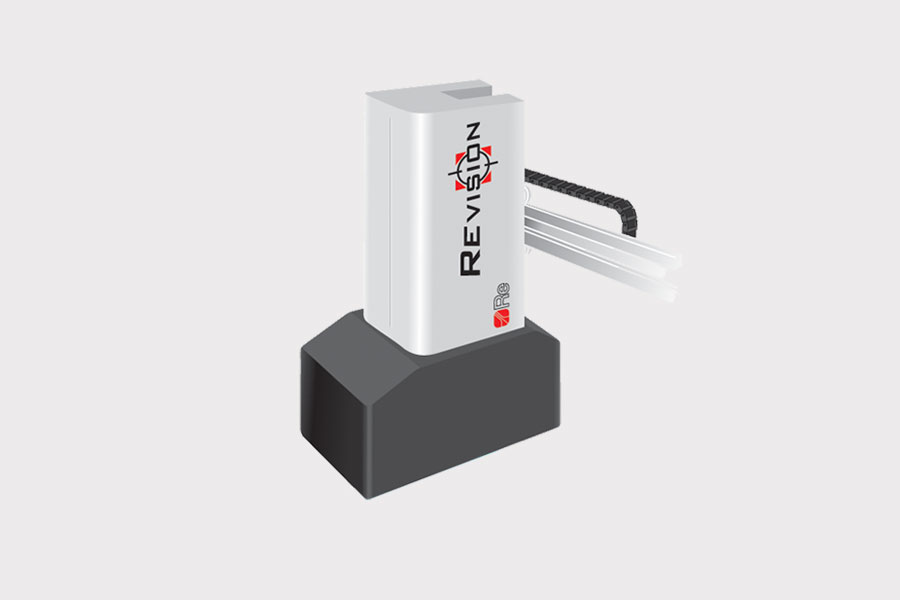

The web viewing system ReVision II Michelangelo is available in two different sizes: 75 and 100, particularly adapted for flexographic and rotogravure printing machines.
Michelangelo has an analogue 10x zoom. This version is equipped with all basic functions, indispensable for the printing process, as for instance a split screen (horizontal and vertical) and a 90° picture-rotation and, nevertheless, it can store up to 8 pictures for the direct comparison during the printing process.
Generally, this version is fabricated with a motorized camera, it can be controlled by a remote keyboard or integrated on the control unit.
Technical data
| |
MH75 |
MH100 |
| Viewing area (mm) |
75x90 |
100x130 |
| Movement |
motorized |
motorized |
| Double camera (front/back) |
optional |
optional |
| External strobe lamp |
optional |
- |
| Optical zoom |
10x |
10x |
| PIcture memory |
8 |
8 |
| Bar code reader |
- |
optional |
| Touch screen |
optional |
optional |
| Lamp for UV inks |
optional |
optional |
| Colour density reference (RGB/CYM) |
included |
included
|
