Product info

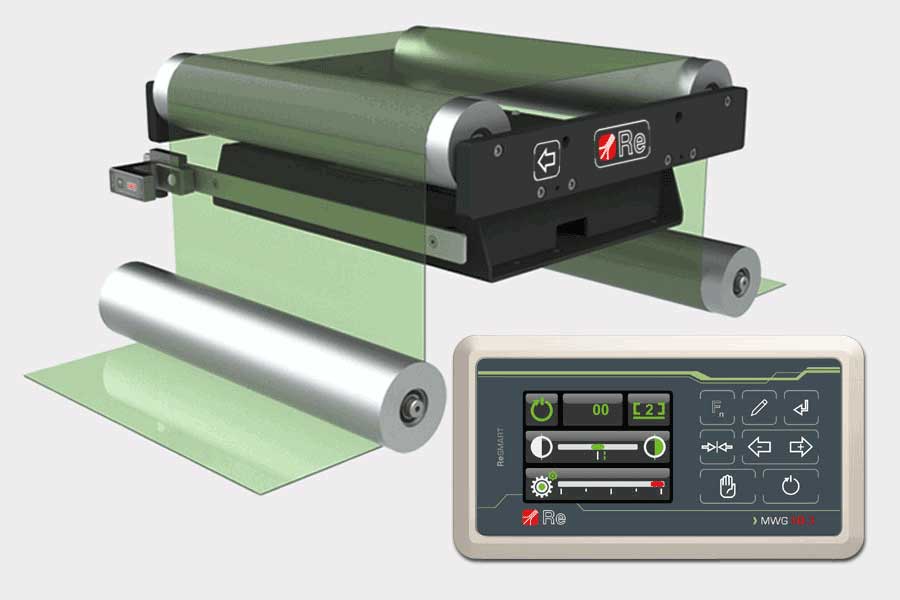

The MWG10.1 web guide controller, integrates the control logic and the power driver for motors in a single and very compact case. It’s equipped with a 2,8” LCD color graphic display which ensures a rapid and user-friendly human/machine interaction.
Thanks to an algorithm specifically developed for the converting sector by our technicians, the web guiding system generates a corrective action to keep the material in the right position accordingly to the parameters desired by the operator.
MWG10.1 web guide controller features analogue inputs suitable for our sensors with analogue output and a CAN interface for the latest generation sensors and optical sensors that we produce.
Technical data
| Power supply |
24 Vdc |
| Max absorption |
4 A |
| Response time |
1 ms |
| Analogue inputs 0÷5 Vdc (12 bit) |
2 for sensors |
| Digital inputs 12÷24 Vdc |
4 inputs for remote control (Auto/Man, Servocenter, Right, Left) |
| Digital input |
1 open collector |
| Fieldbus |
CAN Re (proprietary protocol) |
| Working temperature |
0÷50 °C |
IP protection class
case
frontal panel |
IP20
IP52 |
| Dimensions |
156 x 84 x 46,5 cm |
| Optionals |
remote keypad |
Download
| |
Datasheet |
Drawing PDF |
Drawing Dwg |
3D |
User manual |
| MWG.10.1 |
 |
|
|
|
|
