Product info

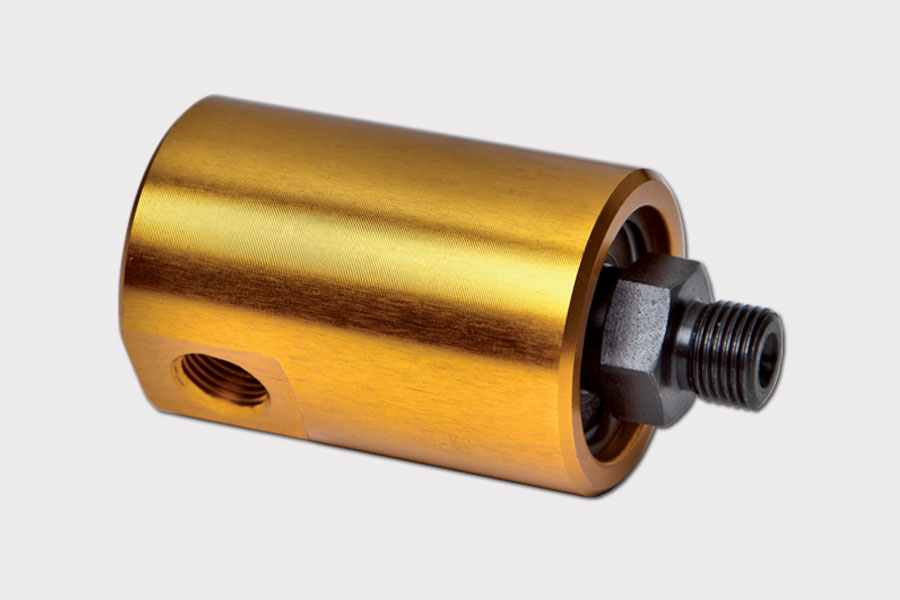

The R series is the most widely used solution to transfer the working pressure to pneumatic clutches and expanding shafts. Suitable for use at high speed, they rotate on two ball bearings. Available in sizes ranging from 1/8” to 1”.
Technical data
| |
R 012 |
R 025 |
R 037 |
R 050 |
R 075 |
R100 |
| Size |
1/8" |
1/4" |
3/8" |
1/2" |
3/4" |
1" |
| Max air pressure (bar) |
10,5 |
10,5 |
10,5 |
10,5 |
10,5 |
10,5 |
| Max vacuum pressure (mm/Hg) |
700 |
700 |
700 |
700 |
700 |
700 |
| Max speed (rpm) |
3000 |
2500 |
2000 |
1500 |
1000 |
500 |
| Max working temperature |
80°C |
80°C |
80°C |
80°C |
80°C |
80°C |
