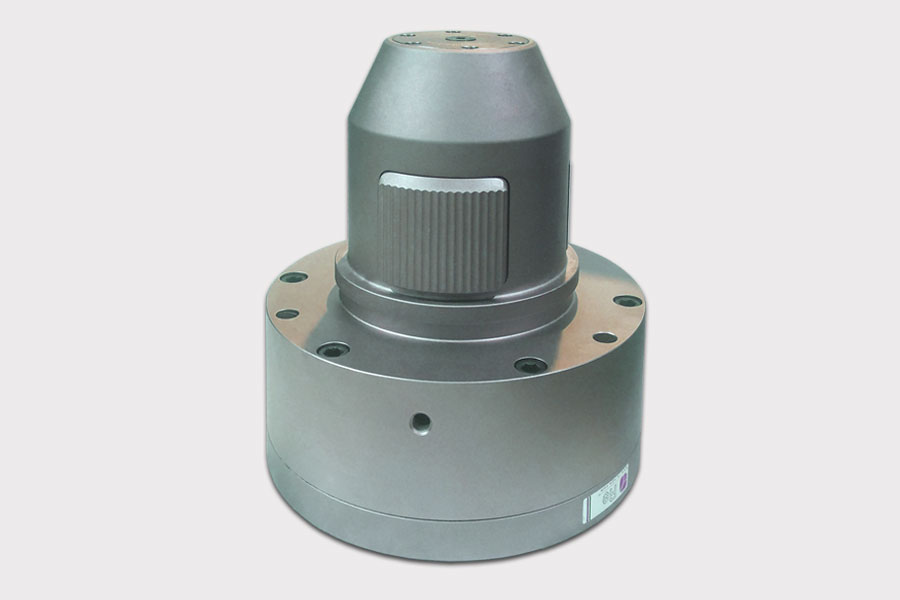

Equipped with a pneumo-mechanical mechanism it guarantees a perfect clamping of the reel core cleaning, safety for the operator, strength and flexibility. It can be made with both mono and double diameter, available for reel cores from 70 mm to 12” of diameter and for high load up to 40000 N. It is usually used in industries that use reels of great dimensions and weight, as in the corrugated cardboard production sector.
Technical data
Mono diameter
| Inside core diameter |
3" |
4" |
6" |
12" |
| Max expansion (mm) |
85 |
111 |
161 |
314 |
| Max load (N) |
20000 |
30000 |
40000 |
60000 |
| Transmissible torque (Nm) |
1000 |
1200 |
1500 |
10000 |
Double diameter
| Inside core diameter |
3"/6" |
| Max expansion (mm) |
85/161 |
| Max load (N) |
20000/30000 |
| Transmissible torque (Nm) |
1000/1200 |
Download
| |
Datasheet |
Drawing PDF |
Drawing Dwg |
3D |
User manual |
| Pneumogrip |
 |
|
|
|
|
