Product info
Since more than 30 years, Re produces a wide range of electromagnetic powder brakes for converting industry.
The experience gained during years, thousands of applications, the constant research into materials and the studies carried out on brakes performance, have allowed us to increase our know-how and to continually improve our product.
Eleflex electromagnetic brakes gurantee:
- high precision torque control
- compact size
- no dust emissions
- reduced residual torque
- versatility and flexibility

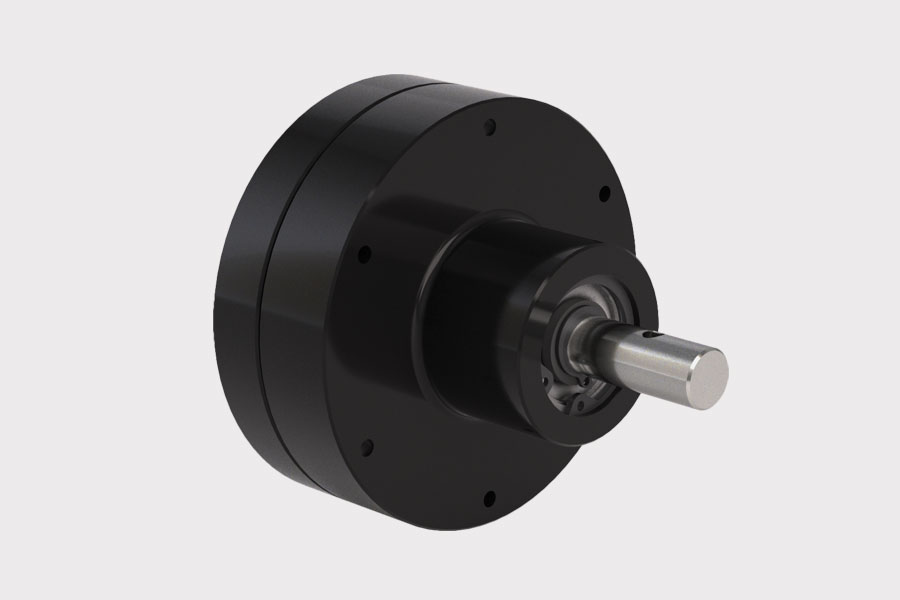

Mini models of electromagnetic brakes are used for those applications that require very low web tensions and precisely controlled material tension, such as the textile and metal wire processing sector. They are available with nominal torque from 2 to 5 Nm.
Technical data
| |
B.20 |
B.53 |
B.55 |
| Nominal torque |
2 Nm |
5 Nm |
5 Nm |
| Residual torque |
0,07 Nm |
0,03 Nm |
0,04 Nm |
| Max current |
1 A |
1 A |
1 A |
| Resistance at 20°C |
24 Ohm |
24 Ohm |
24 Ohm |
| Voltage (PWM) |
24 V |
24 V |
24 V |
| Power dissipation |
24 W |
70 W |
75 W |
| RPM min/max |
40-2000 |
40-2000 |
40-2000 |
| Weight |
0,8 kg |
1,55 kg |
1,3 kg |
