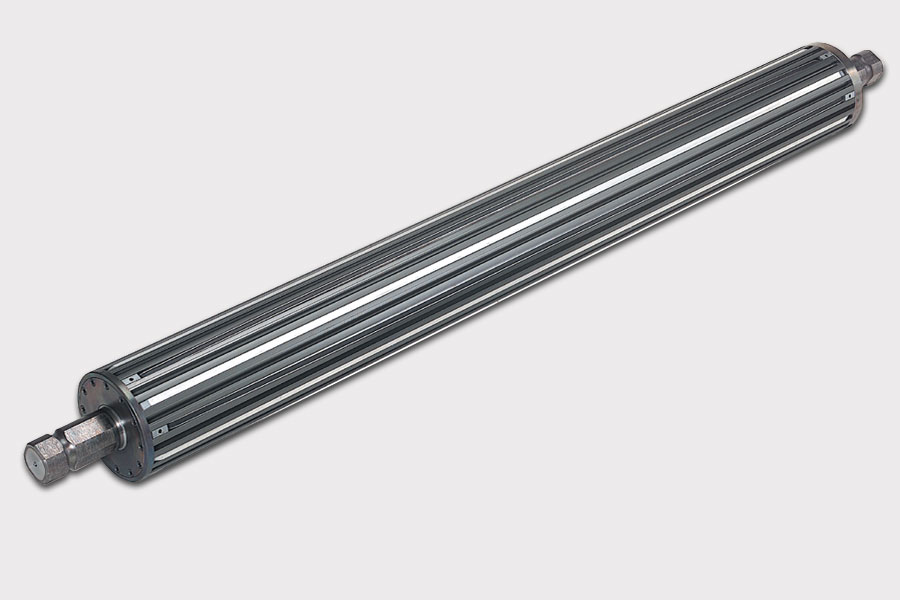

The CX expanding shafts are characterised by a pneumatic-mechanical control that guarantees high precision reel centring. This solution is essential in all applications where reels have to be unwound or rewound in a perfectly concentric fashion to avoid stressing the material. Thanks to this feature, the self-centring shaft is used for foil materials with a thickness of only a few microns, such as aluminium.
Technical data
| Expanding shafts diameter (mm) |
69 |
74 |
148 |
150 |
| Slots number |
3 rubber
3 aluminium |
3 rubber
3 aluminium |
6 rubber
3 aluminium |
6 rubber
3 aluminium |
| Max body lenght (mm)(0) |
T-87 |
T-87 |
T-90 |
T-90 |
| Transmission torque (Nm)(1) |
|
|
|
|
| Min. air pressure (bar) |
6 |
6 |
6 |
6 |
(0) T=expanding shaft body
(1) values referring to 1 m shaft
