Product info

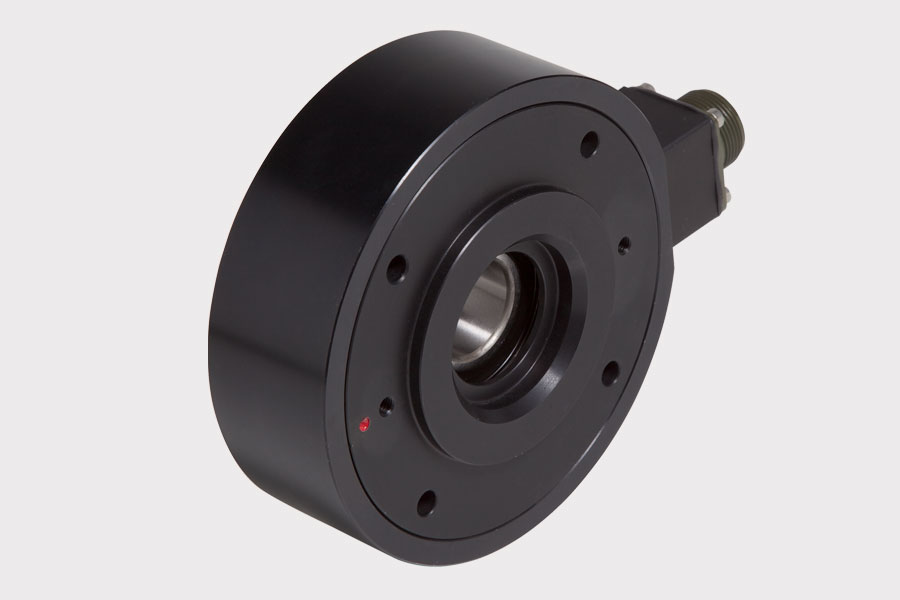

Compact, versatile and reliable, these load cells are used for through shaft assembly application.
CK shaft through load cells are available with loads range from 250 to 30000 N and in special versions for use in high humidity environments or vacuums.
Technical data
| Precision class |
|
0,5% |
| Sensitivity |
Normal
Supply |
from 1,5mV/V to 2,0mV/V
10V - max 15V |
| Total error-repeatability-histeresy-linearity |
|
< ± 0,05% end scale value |
| Measuring principle |
|
strain gauge full bridge |
| Strain gauge bridge resistance |
|
350Ω Ohm |
| Max overload |
|
300% |
| Temperature range |
|
0°C / +60°C |
| Option |
|
4-20 mA output |
| Load cell model |
Load - N |
| CK.100 |
250 - 500 |
| CKF.105 |
250 - 500 - 1000 |
| CKF.125 |
400 - 750 - 1500 |
| CK.175 |
1000 - 1500 - 3000 |
| CK.225 |
3000 - 6000 - 10000 |
| CK.265 |
5000 - 10000 - 20000 - 30000 |
