Product info

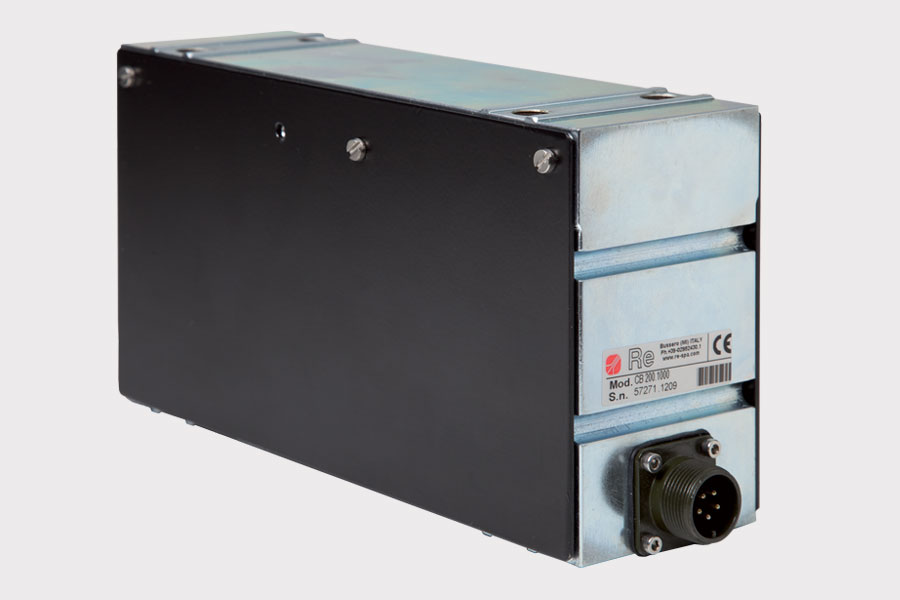

CB base style load cells are the ideal solution for detecting web tension because they can measure it without the infuence of other forces such as the weight of the roller, the supports,...
The structure of CB load cells allows to eliminate the tare mechanically rather than electrically as with other kinds of load cells. Moreover, they offer high resistance to vibrations and overloads.
CB base style load cells are usually applied on paper mills, supercalandring and rolling machines, but also on plants in which the laminate must be treated with extreme attention.
Technical data
| Precision class |
|
0,5% |
| Sensitivity |
Normal
Supply |
from 1,5mV/V to 2,0mV/V
10V - max 15V |
| Total error-repeatability-histeresy-linearity |
|
< ± 0,05% end scale value |
| Measuring principle |
|
strain gauge full bridge |
| Strain gauge bridge resistance |
|
350Ω Ohm |
| Max overload |
|
300% |
| Temperature range |
|
0°C / +60°C |
| Option |
|
4-20 mA output |
| Load cell model |
Load - N |
| CB.50 |
200 - 400 - 500 - 1000 |
| CB.70 |
150 - 250 - 500 - 1000 - 2000 |
| CB.80 |
250 - 500 - 1000 - 2000 |
| CB.200 |
2500 - 5000 - 10000 - 20000 - 30000 |
| CB.300 |
5000 - 10000 - 20000 |
Download
| |
Datasheet |
Drawing PDF |
Drawing Dwg |
3D |
User manual |
| CB.50 |
 |
|
|
|
|
| CB.70 |
|
|
|
|
|
| CB.80 |
|
|
|
|
|
| CB.200 |
|
|
|
|
|
| CB.300 |
|
|
|
|
|
