Product info

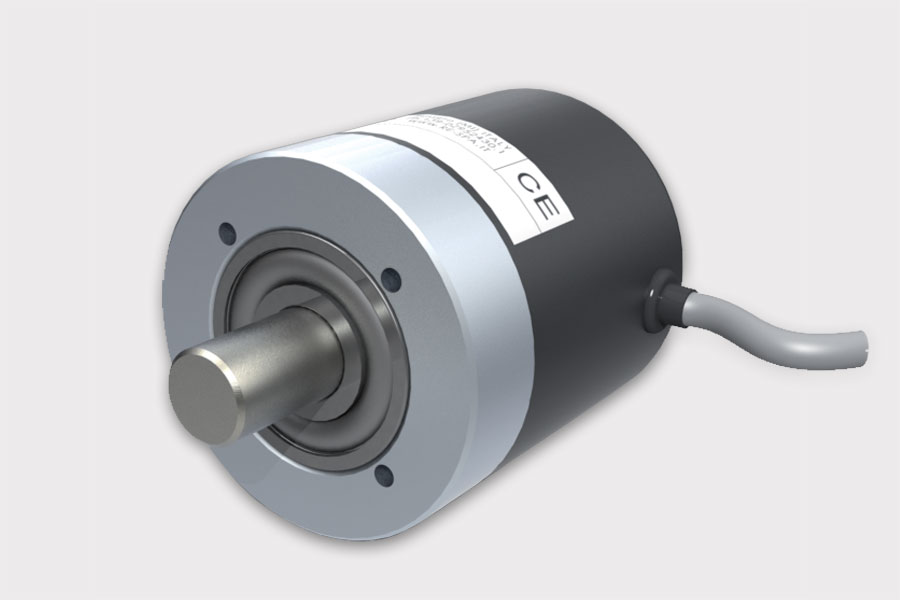

Aries is a potentiometer for the control of the web tension with dancing roller. It may seem obvious, but, for a precise web regulation it is necessary that also this equipment is tough and of quality as the potentiometer ARIES is. And it is also easy to install.
The quality and the toughness of ARIES could be perceived by its plastic structure reinforced with fibreglass, aluminium body, double ball bearing, steel shaft and IP54 protection.
Technical data
| Resistive value |
10K Ohm |
| Mechanical rotation |
300 +/-5° |
| Electrical rotation |
270 +/-10° |
| Tolerance |
+/- 10% |
| Linearity |
+/- 5% |
| Min resistance |
4 Ohm |
| Power rating (70° C) |
1 W |
| N. of max shaft revolutions |
50.000 |
| Shock |
50 G, 11 ms |
| Vibrations |
10G 10÷150 Hz |
| Shaft diameter |
10 mm |
| Housing material |
PA 66 glass fiber reinforced |
| Ball bearing |
2 |
| Limit stop |
automatic clutch (without lock) |
| IP protection class |
IP54 |
| Working temperature |
0°÷80° C |
| Storage temperature |
-25°÷85° C |
| Weight |
150 g |
