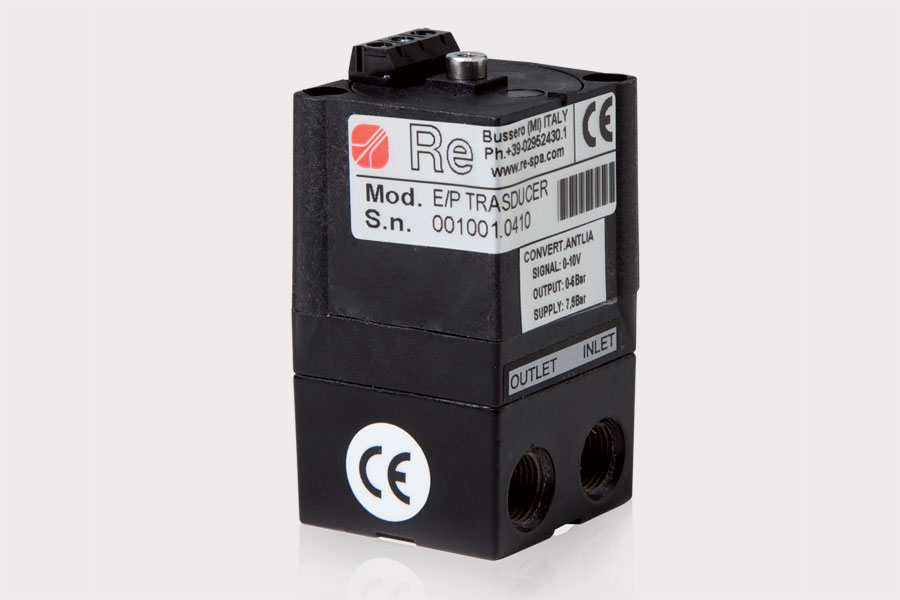

Antlia is an electropneumatic converter, which help you to obtain highest tension precision of the web; recommented for the excellent price/performance ratio, it can be used both on open-loop and closed-loop systems.
Thanks to its compact dimension (32x34x64 mm) it can be easily installed near the brake or the clutch it is connected to, in order to obtain the maximum performance.
Antlia proportionally transforms an input electric signal into a pneumatic signal.
Technical data
| |
Antlia |
Antlia XL |
| power supply |
24 Vdc |
24 Vdc |
| Input signal |
0÷10 V (on request 4÷20 mA) |
0÷10 V |
| Working temperature |
0÷60 °C |
-20÷50 °C |
| IP protection class |
IP30 |
IP65 |
Electromagnetic compatibility,
compliance with CE requirements
emissions
immunity |
EN61000-6-4:2001
EN61000-6-2.1999 |
EN50081-2: 1994
EN50082-2: 1995 |
| Pneumatic connections |
|
|
Supply over the maximum
output pressure |
1,5 bar (22 psi) |
2 bar (29 psi) min |
| Output pressure |
0÷6 bar max; 0÷90 psi max* |
0÷6 bar max; 0÷90 psi max* |
| Fluid |
oil free, dry air, filtered to 5 microns |
oil free, dry air, filtered to 5 microns |
| Connection |
1/8" NPT |
1/4" NPT |
* different outputs on request
Download
| |
Datasheet |
Drawing PDF |
Drawing Dwg |
3D |
User manual |
| Antlia |
 |
|
|
|
|
| Antlia XL |
|
|
|
|
|
